Problem
The customer had a timber window with three separate glass units. The units had failed and were badly misted, so visibility through the window was very poor despite the customer having a beautiful ocean view.
Case Study
Residential Window Inspection
Misted glass units and rotten timber window frame in Galway
This case was inspected for a customer on Inishmore, County Galway.
The customer had a timber window with three failed glass units that were badly misted, leaving very poor visibility through a window with a beautiful ocean view.
Our repair-first inspection found that the problem was not only the misted glass. The timber frame was water-damaged, rotten in places and no longer suitable for a proper glass-only replacement.
Residential Window Inspection Case Study
Misted glass and timber frame condition

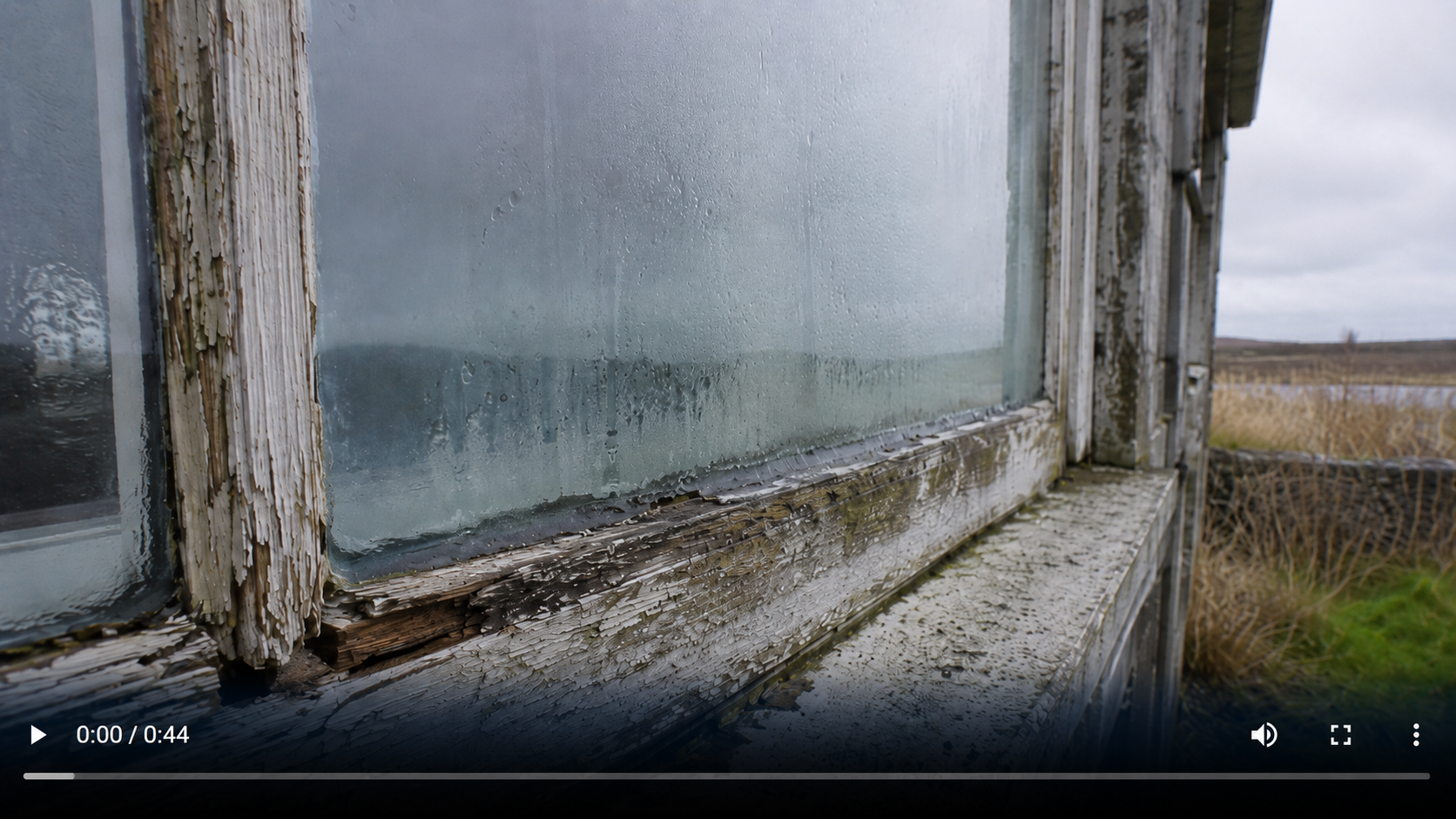

This photo shows the misted glass and rotten timber frame condition documented during the inspection.
This inspection shows why misted glass should not be assessed in isolation. The frame condition, glazing depth, timber maintenance history and suitability for a modern insulated glass unit all affect the correct recommendation.
Case summary
Why glass-only replacement was not the right advice
What the Customer Wanted
The customer wanted to replace the three failed glass units with one large single glass unit, roughly 3 metres by almost 2 metres. They also asked whether a thicker unit, at least 24 mm, could be fitted.
Our Repair-First Inspection
We inspected not only the glass, but also the timber frame, glazing depth, condition of the timber and whether the frame could safely and practically accept a modern thicker glass unit.
What We Found
The existing insulated glass units were very thin, around 12 mm total thickness: 4 mm glass, 4 mm spacer and 4 mm glass. At that thickness, thermal performance was very limited compared with a modern insulated glass unit.
The timber frame was badly weathered, had not been painted or maintained regularly, and had absorbed water over time. Parts of the timber had become rotten, leaving the frame too thin and too damaged to properly accept a thicker modern insulated glass unit.
Why Glass Replacement Alone Was Not Suitable
Even replacing the old glass with another thin unit would not have been a good professional repair because the frame itself was no longer suitable. Putting new glass into a rotten or water-damaged frame can leave the customer with the same structural and weathering issue.
The correct advice was not to force a glass replacement into a frame that was no longer serviceable.
Recommended Solution
We advised that a PVC replacement window was the better route. This also made sense because the other windows in the house were already PVC, so the new window could match the rest of the property.
We recommended a white PVC window with one large modern insulated glass unit. A thicker modern glass unit, potentially around 32 mm with argon gas and stronger glass specification, would offer much better performance than the old thin 12 mm units, subject to final survey and specification.
Timber maintenance advice
Timber windows need regular protection
Timber windows need regular painting and maintenance. If timber is left unpainted or exposed for too long, it can absorb water, rot and lose the ability to hold glass correctly.
Regular painting helps protect the timber and extend the usable life of the window. Once the frame is too thin, rotten or water-damaged, repair-first advice sometimes means recommending replacement because the frame is no longer serviceable.
What this case shows
Misted glass is not always the whole problem
- Misted glass is not always the only problemThe frame condition can be the deciding factor in whether glass replacement is suitable.
- Timber frames must be inspected before glass replacementGlazing depth, timber condition and water damage need to be checked before specifying new glass.
- Old thin glass units can have very limited thermal performanceThe existing 12 mm units were far behind what a modern insulated glass unit can offer.
- Rotten timber may make glass-only replacement unsuitableNew glass should not be forced into a frame that is no longer serviceable.
- Regular painting helps timber windows last longerMaintained timber is better protected from water absorption and rot.
- Repair-first advice can still recommend replacementWhen the frame is no longer suitable, replacement can be the more durable and professional route.
- A PVC replacement can be the better long-term optionIn this case, PVC also matched the other windows in the house.
